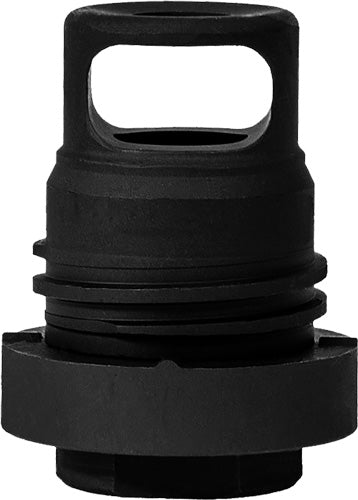

Yankee Hill Machine Mini Phantom QD Muzzle Brake 9mm 5/8x24 Black

The Yankee Hill Machine Mini Phantom QD Muzzle Brake is a compact quick-disconnect muzzle device bored for 9mm and built to serve as the mounting point for YHM's fast-attach suppressor system and other 1.375-24 HUB-compatible suppressors. The Mini Phantom is CNC-machined from tough 4140 steel and finished in a corrosion-resistant Phosphate matte black for long service life under hard use.

At only 1.6 in overall length and 3.2 oz, this brake adds roughly 1 in to the host barrel's overall length while keeping the front end light and maneuverable. It threads onto any barrel with a 5/8x24 thread pitch, and a Shim Set is included so the end user can properly time the brake on the barrel for a clean, repeatable lockup with the mating suppressor. With an outside diameter of 1.245 in, the Mini Phantom QD keeps a low profile and is well suited to compact 9mm hosts where a full-size Phantom would be too long.

Designed and manufactured in the USA by Yankee Hill Machine, the YHM-3109-1MB-24A is the dedicated 9mm-bore variant in the Mini Phantom QD family and mates with any suppressor that follows the industry-standard 1.375-24 HUB mounting pattern.
