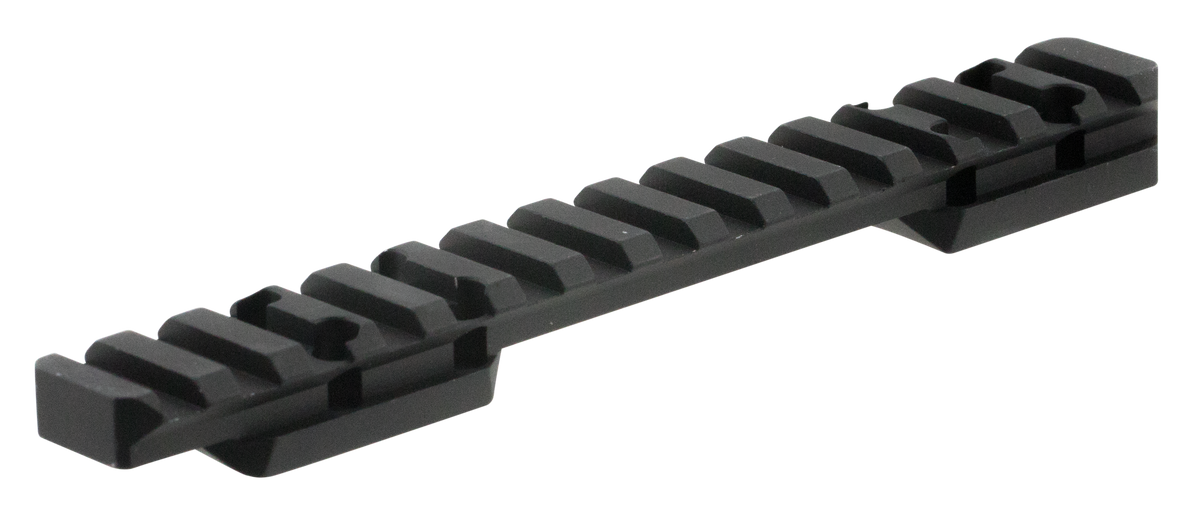

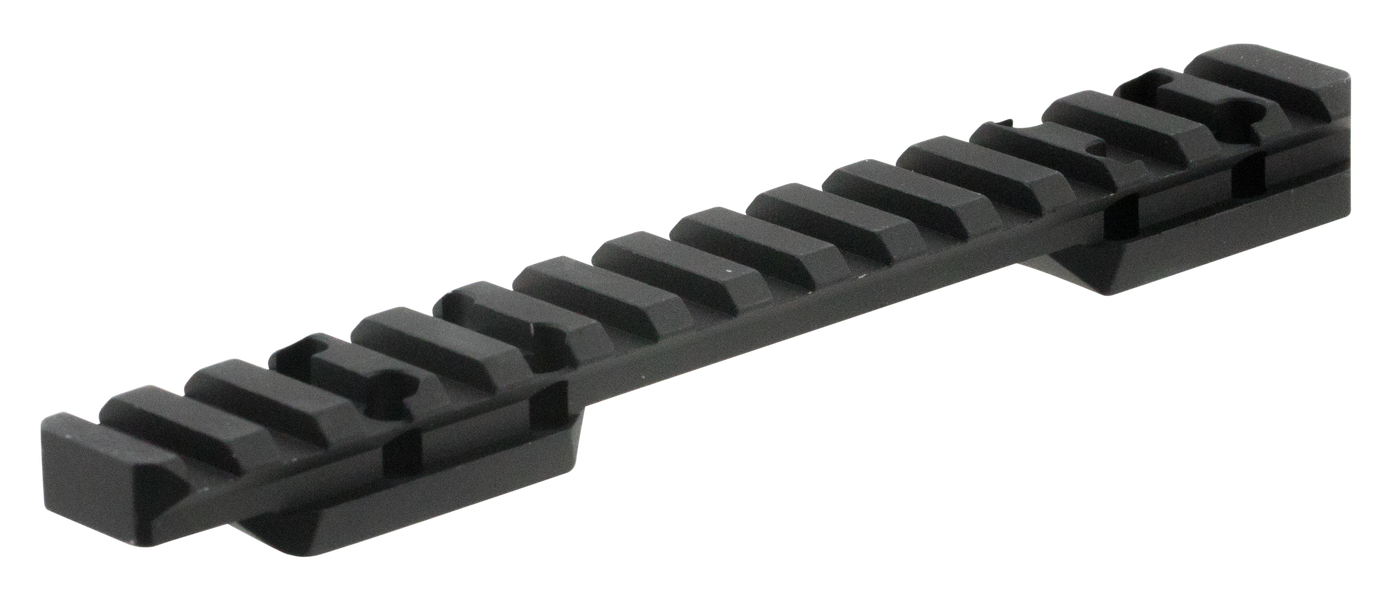

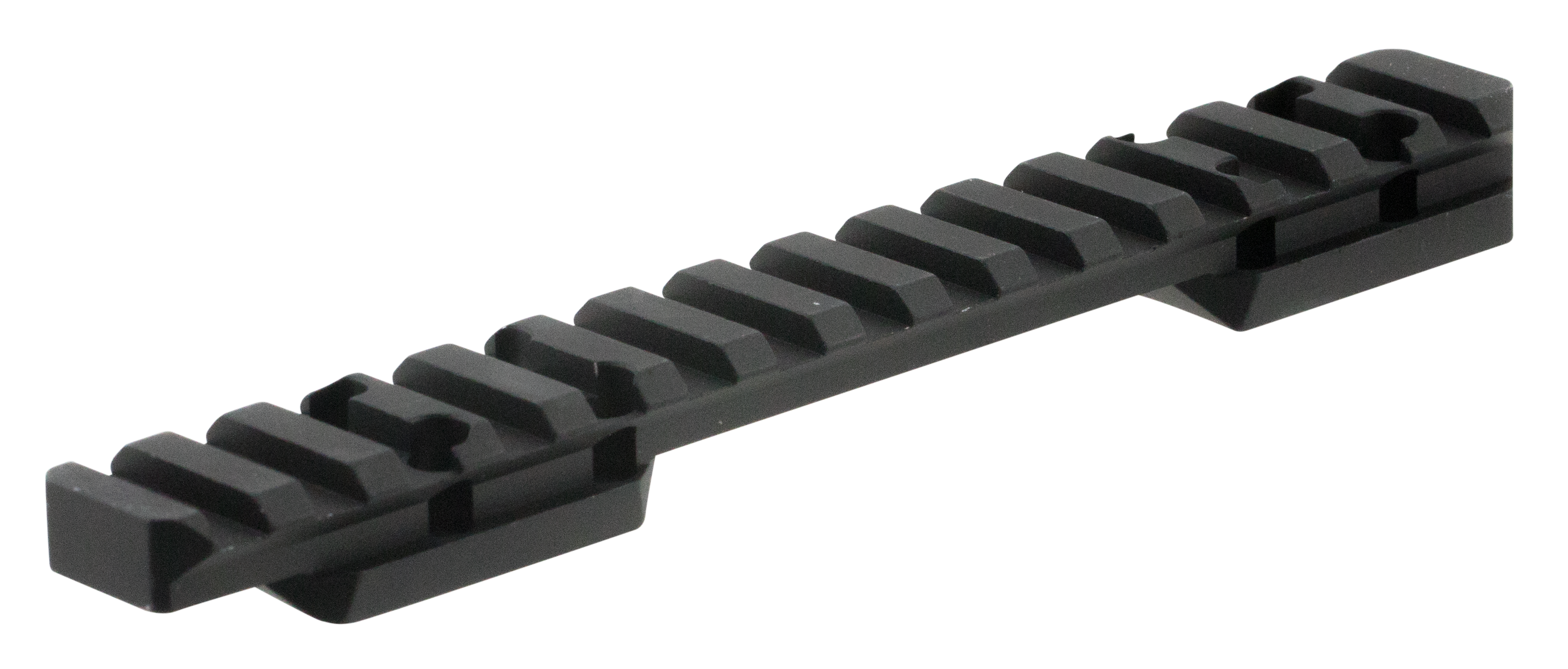

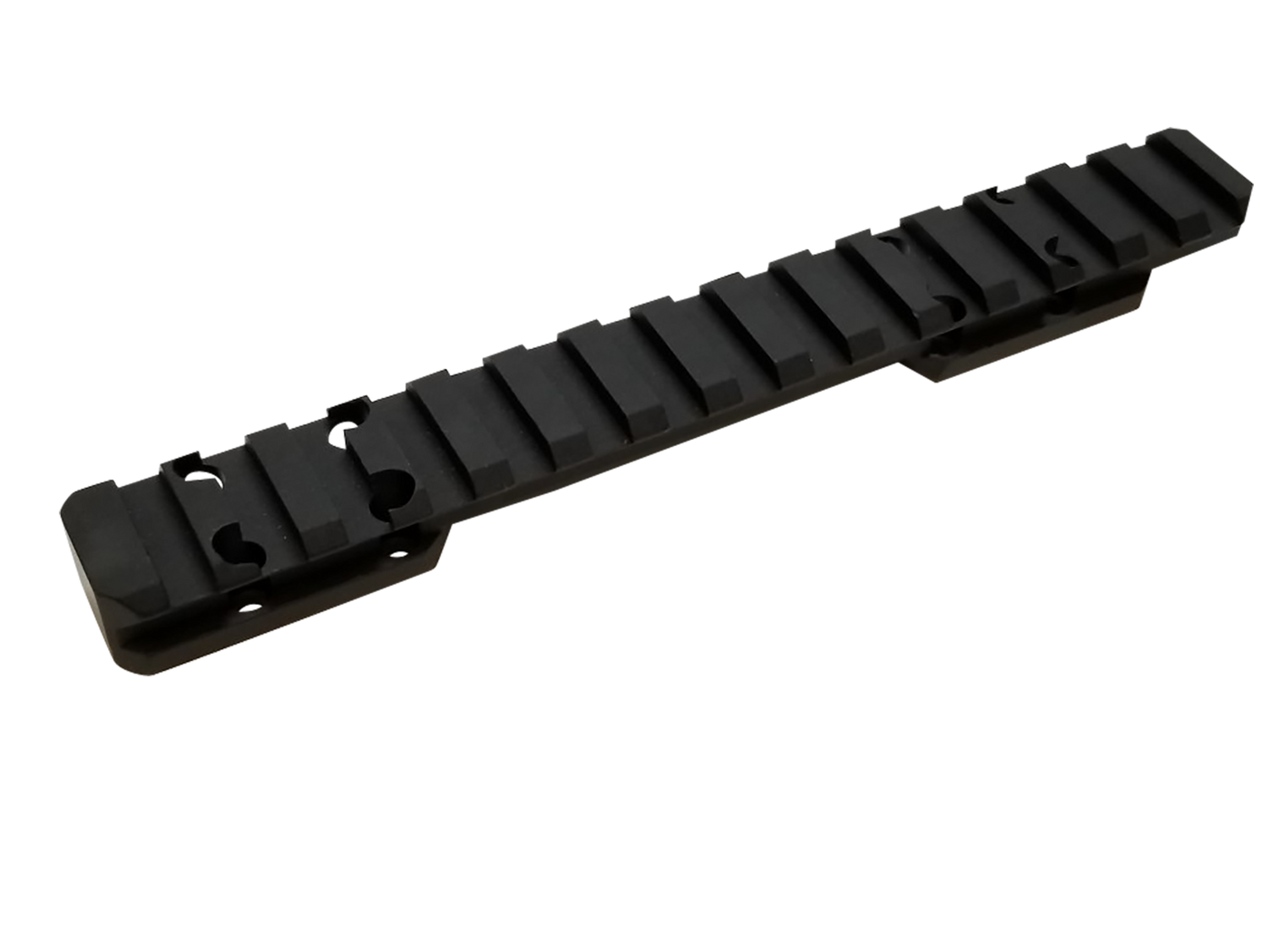

Talley Browning X-Bolt Picatinny Rail Short Action 20 MOA 6.16" Black Anodized

The Talley Browning X-Bolt Picatinny Rail is a precision-machined one-piece scope base purpose-built for the Browning X-Bolt short action rifle. It provides a rigid MIL-STD-1913 Picatinny mounting platform for any optic or accessory built to the standard cross-slot pattern, with rings sold separately so you can match ring height and diameter to your specific scope.

Talley CNC-machines this rail from 6061 aluminum and finishes it in a low-glare matte black anodized coating that holds up to repeated mount cycles and magnum-class recoil. The integrated 20 MOA offset shifts the optical centerline downward, giving long-range shooters additional elevation travel inside their scope when dialing for distance.

Measuring 6.16" long, the base bolts directly to the X-Bolt receiver using the included hardware and sits at 0.437" at the front and 0.537" at the rear for a natural cheek weld through standard stocks. It is a dedicated short action fit and is not interchangeable with magnum or long action X-Bolt receivers.
