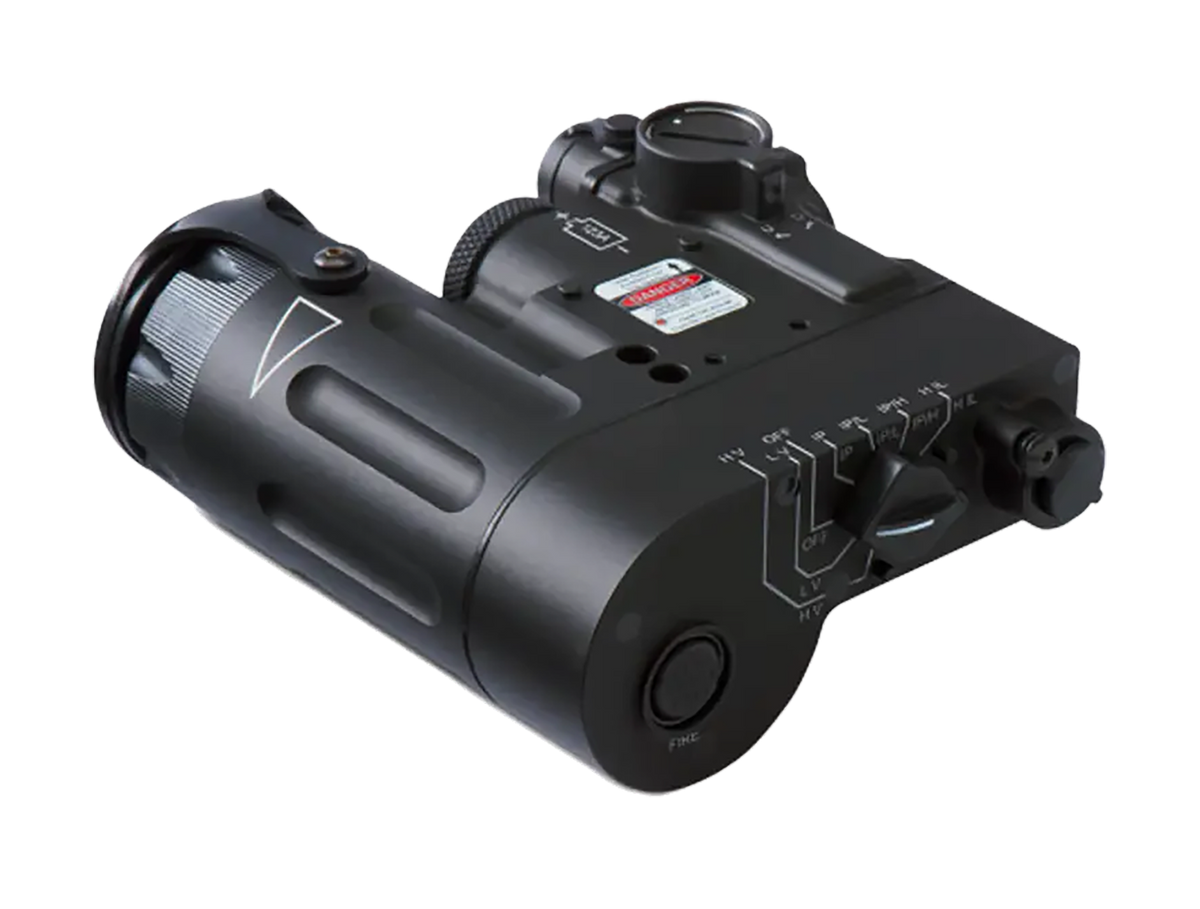

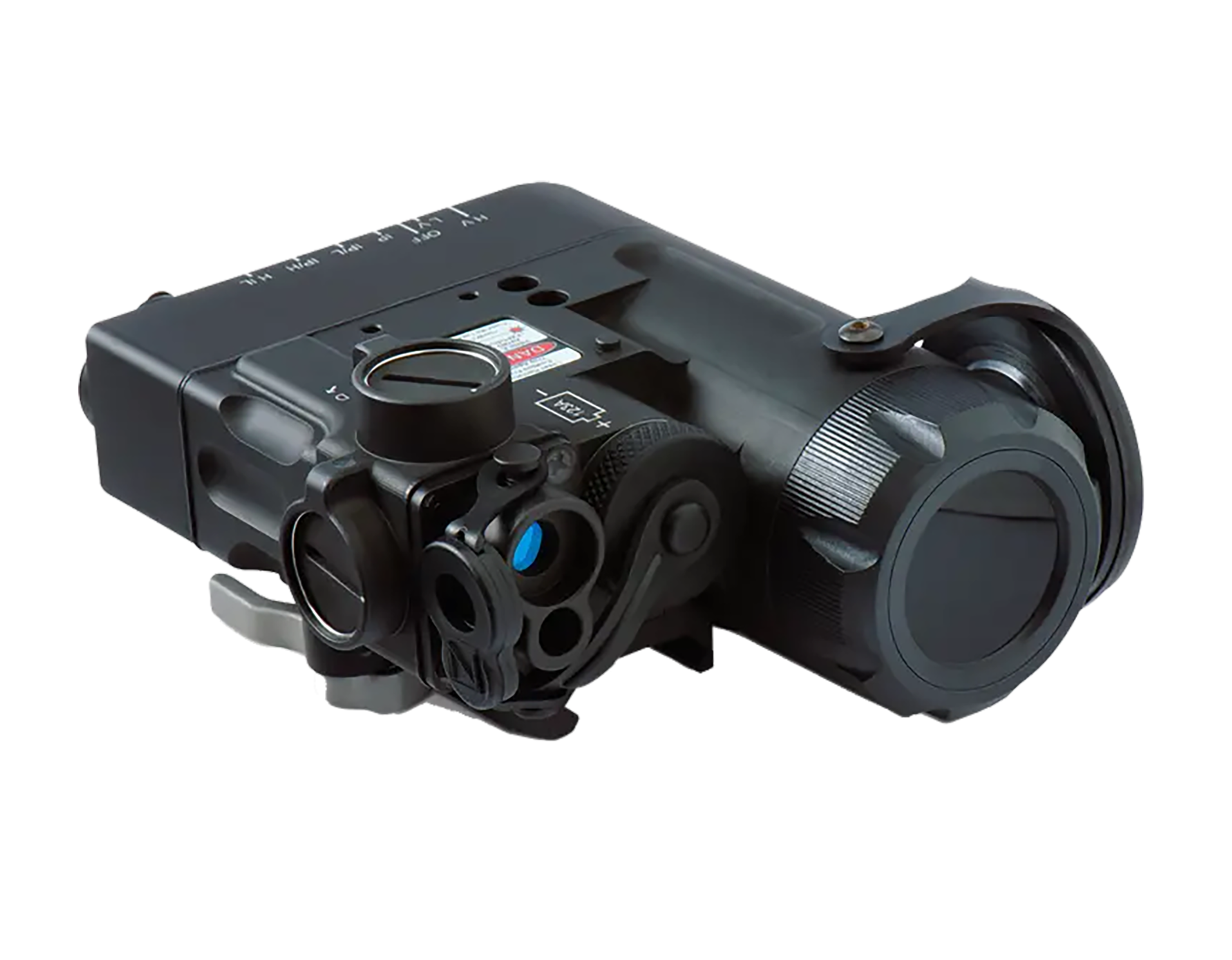

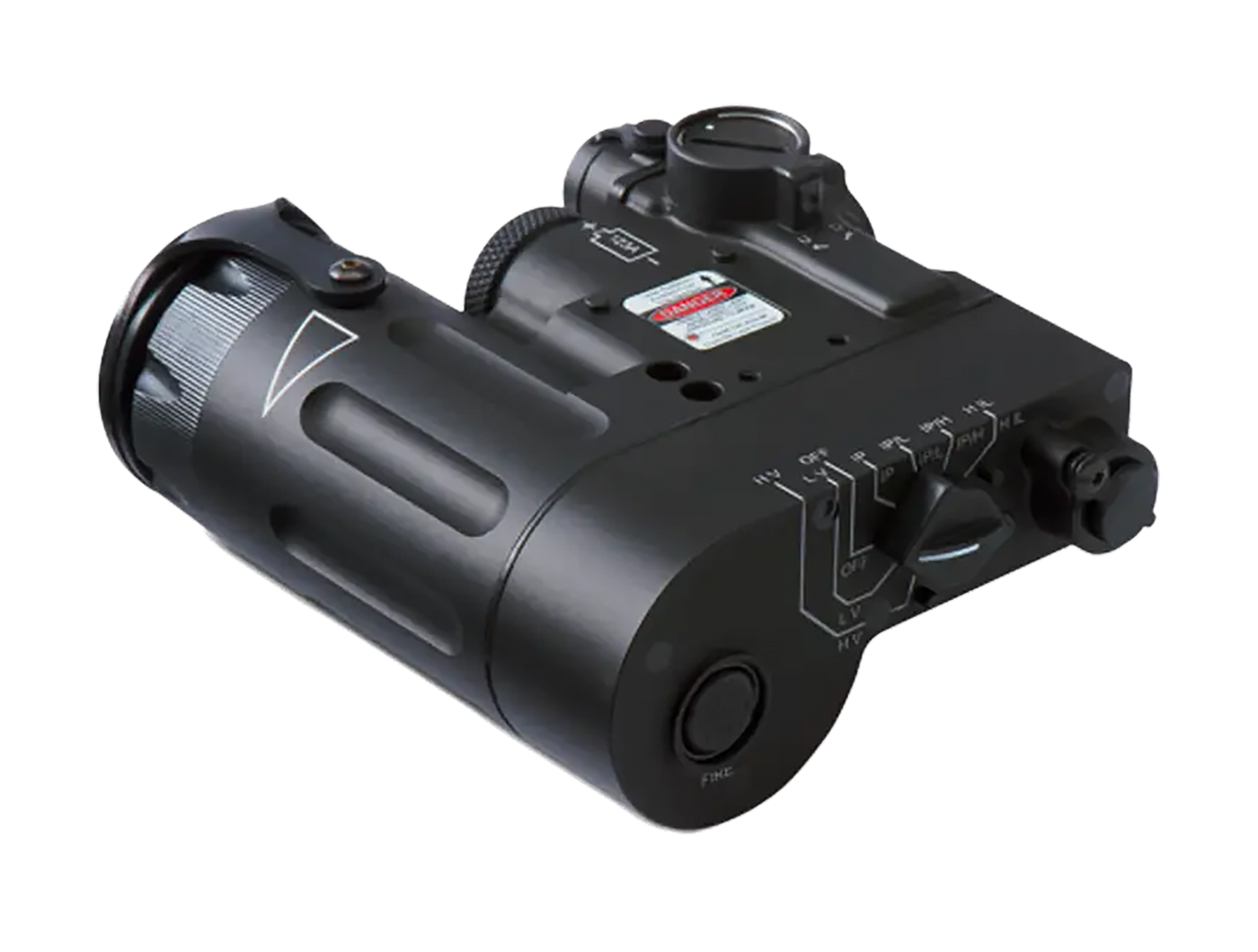

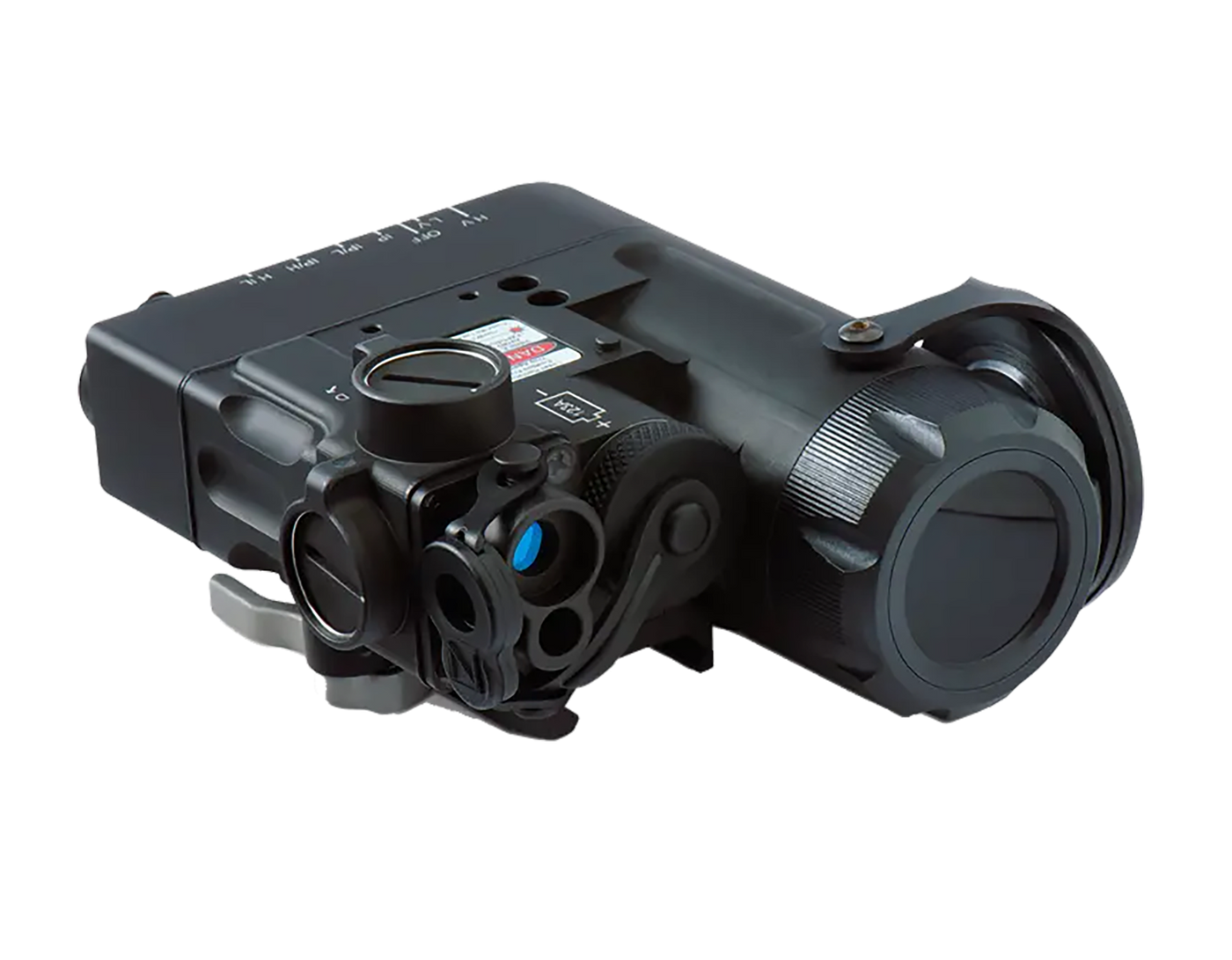

Steiner DBAL-D2 Green/IR Dual Beam Aiming Laser 532nm/850nm Picatinny QR HT Mount

The Steiner DBAL-D2 is a Dual Beam Aiming Laser that combines a visible 532nm green aiming laser, a Class 1 850nm infrared (IR) aiming laser, and a high-output 600mW IR LED illuminator in a single rail-mounted unit. Built for night-vision-compatible aiming, the DBAL-D2 reaches out to 1000 meters with the adjustable illuminator for covert identification and designation, while the visible green laser and the 850nm IR aiming laser put a sharp point on target out to roughly 450 yards under nods.

The unit is housed in a ruggedized aluminum body with a matte black finish. It weighs 12.50 oz and measures 3.95" L x 3.37" W x 1.59" H. A single CR123A battery powers the unit, and operation is handled through a top-mounted push-button switch. The aiming dot is 0.50 MRAD, delivered through high-definition aspherical telescopic lens optics for a clean, repeatable point of aim. The IR illuminator beam is adjustable from 2 to 30 degrees, letting the operator dial flood or spot coverage to the target, and windage and elevation adjustments are made via accessible turrets.

The DBAL-D2 ships with Steiner's QR HT (H-Series) quick-release mount, which clamps to any standard Picatinny rail for tool-free removal and reattachment without losing zero. The housing is waterproof to 5 meters for all-weather field use. Visible green laser output is rated at 5mW; IR aiming laser at 0.7mW (Class 1).
