Please Note: Only one available. The M240 Kit shown is the exact kit that will be shipped when ordered.
THERE IS ONLY ONE KIT AVAILABLE IN THIS PART NUMBER. Please note that having this product in your cart does not lock in the item. The item can be in multiple carts at the same time. It is not until a customer checks out and pays for the item that it is no longer available. The customer who pays first will receive the kit.
History
Manufactured by Fabrique Nationale d’Herstal, the M240 is the US military designation for the Belgium FN MAG-58 ("Mitrailleuse d'Appui Général”) general-supporting machine gun; a belt-fed, gas-operated, air-cooled, crew-served, fixed headspace, medium machine gun chambered for the 7.62×51mm NATO cartridge. The M240 has been used by the United States Armed Forces since the late 1970s. It was first adopted as the U.S. Army's standard vehicle machine gun in 1977, and slowly adopted for more applications in the 1980s and 1990s. It is used extensively by the Marine Corps infantry, most often in rifle companies. Its versatility is demonstrated by its ability to be fired effectively from its integral bipod, mounted on a tripod, onground vehicles, watercraft and aircraft. With a rating of 26,000 mean rounds between failure, the M240 is highly regarded for its reliability and has seen standardization among NATO members.
Operation
Like all FN MAG variants, the M240 is fed from disintegrating belts and is capable of firing most types of 7.62mm (.30 cal) NATO ammunition; M240 variants can also be converted to use non-disintegrating belts. The weapon fires from the open bolt position, meaning that the bolt is held to the rear and only moves forward as it is firing a round. The firing pin is static and the bolt moves around the firing pin, circumventing any need for a hammer. A sear is used to time the internal mechanisms of the weapon to provide a consistent rate of fire, ensuring proper function and accuracy. Clearing the weapon is performed by ensuring that the bolt is locked to the rear and the weapon is on safe. The top cover is then lifted, the remaining belt (if any) is swept out of the feed tray, the feed tray is lifted to visually inspect the chamber and the face. The rate of fire may be controlled by three different gas regulator settings. The barrels can be exchanged rapidly with a barrel release button located on the left side of the weapon.
Specifications for the original M240 machine gun
- Manufacturer: FN America
- Weight: 27.6 lbs.
- Length: 49.7 in
- Barrel length: 24.8 in
- Width: 4.7 in
- Height: 10.4 in
- Cartridge: 7.62×51mm NATO
- Action: Gas-operated, open bolt
- Feed system: Belt-fed
- Sights: Front - Blade-style iron sights / Rear - Folding leaf with aperture and notch
- Rate of fire: Gas Setting 1: 650–750 RPM / Gas Setting 2: 750–850 RPM / Gas Setting 3: 850–950 RPM
- Muzzle velocity: 2,800 ft/s
- Effective firing range: 800 m (875 yd) (bipod) / 1,100 m (1,203 yd) (tripod)
- Maximum firing range: 3,725 m (4,074 yd)

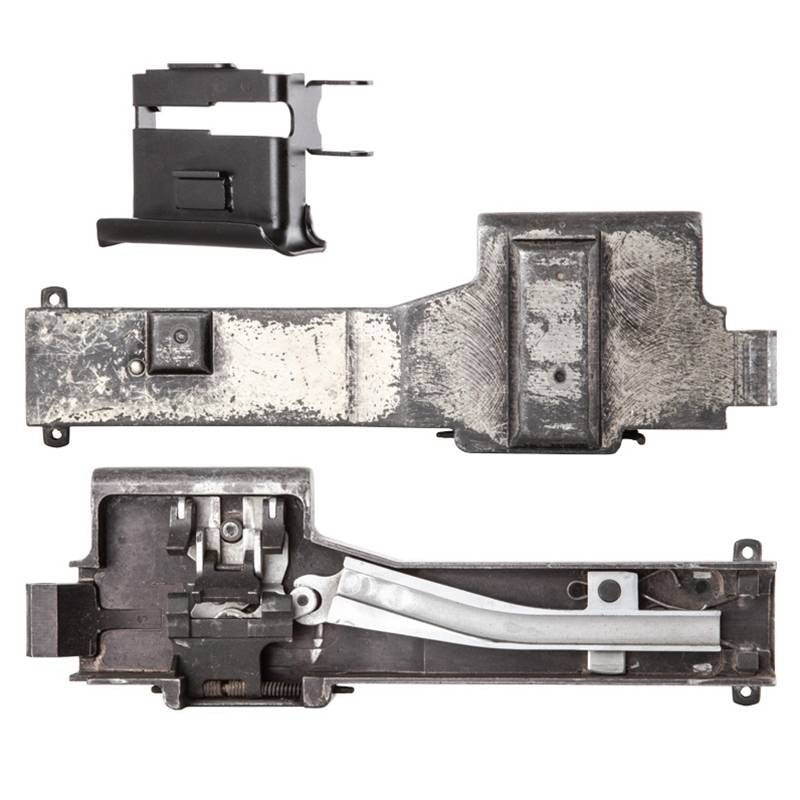

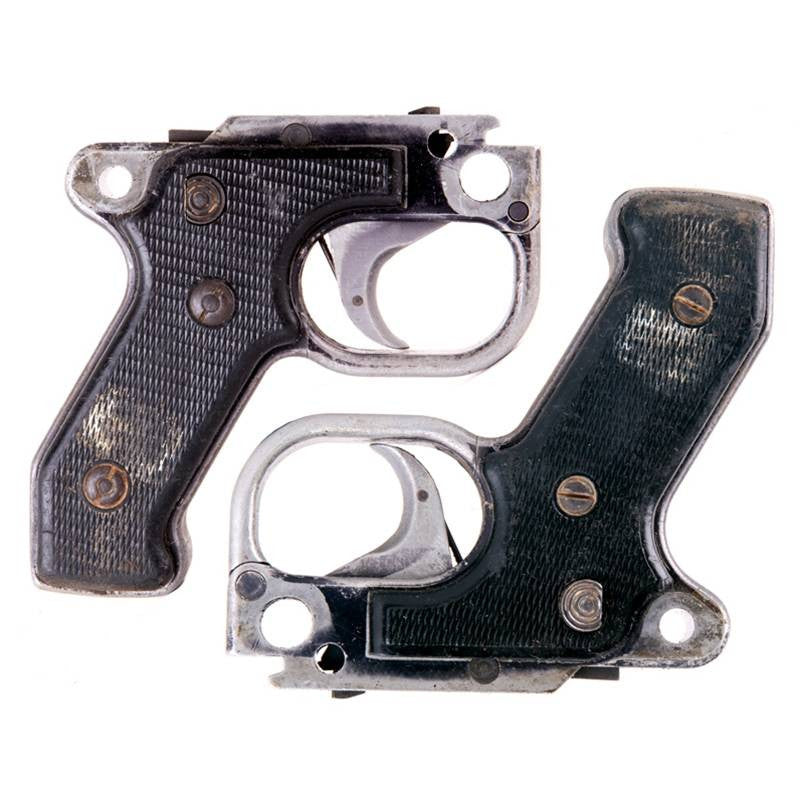

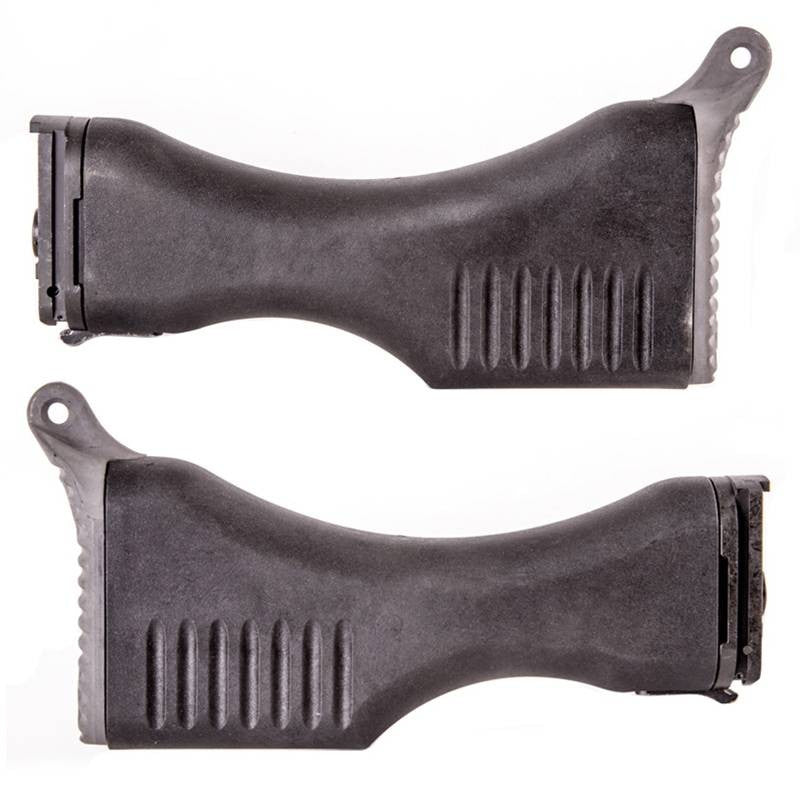

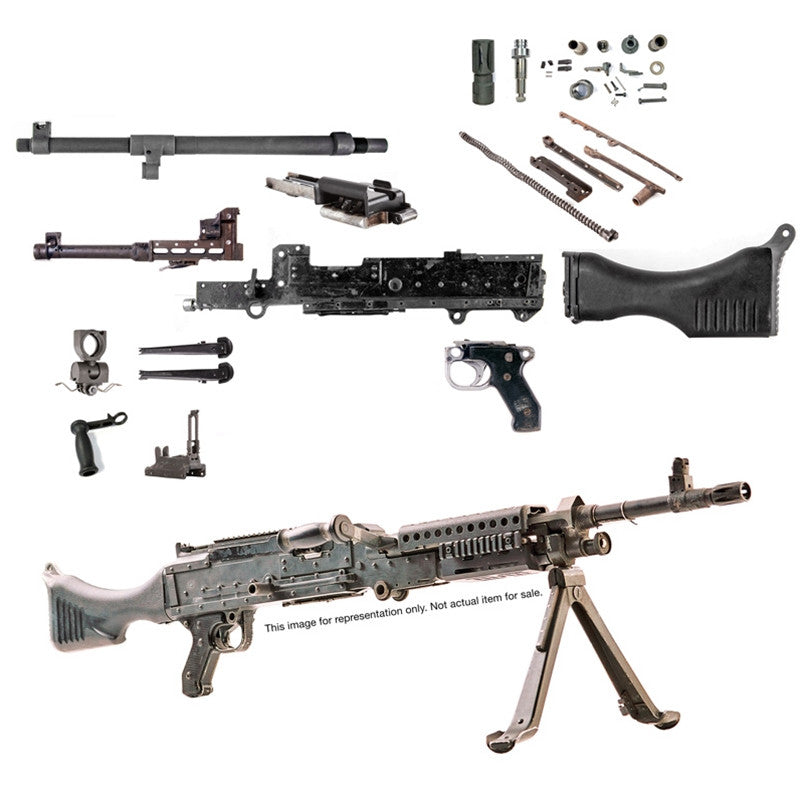

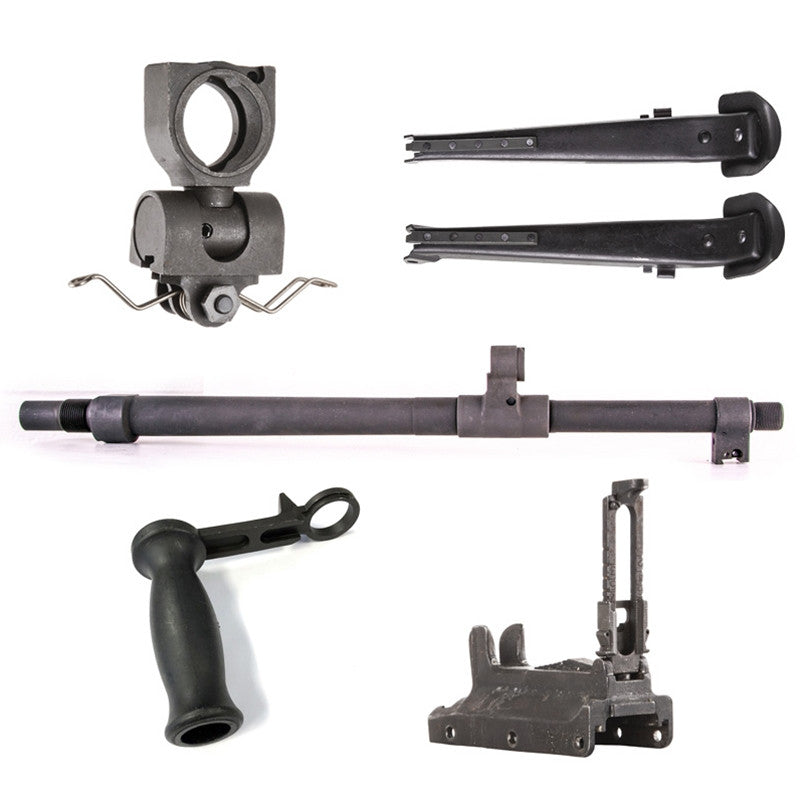

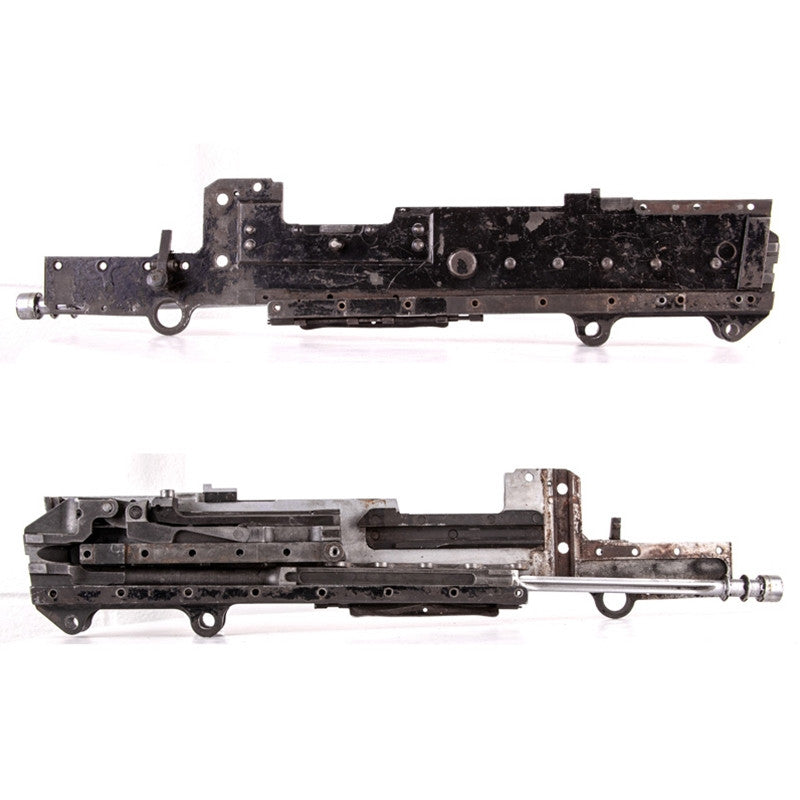

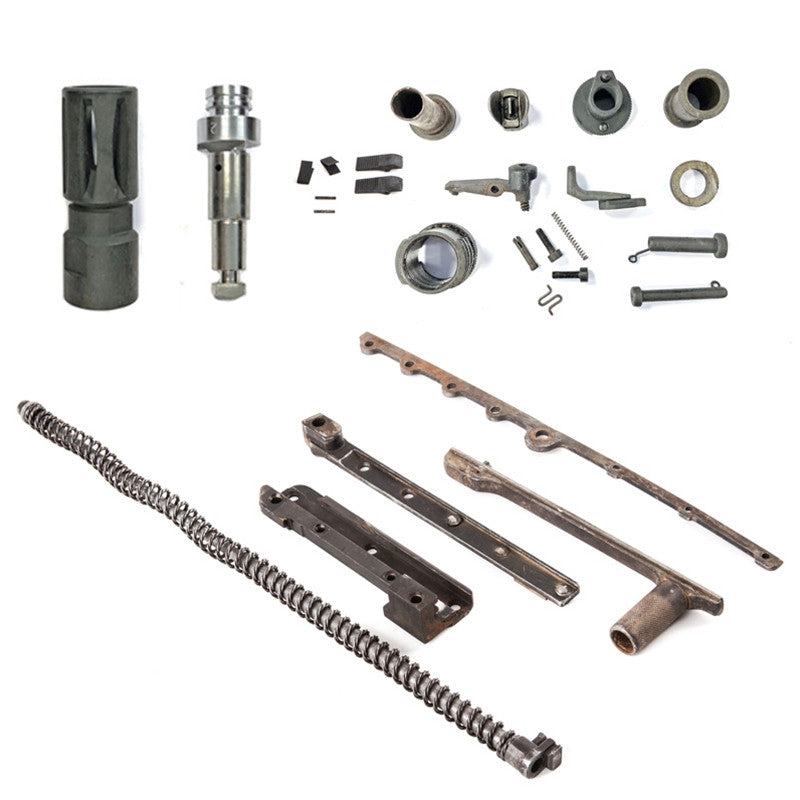

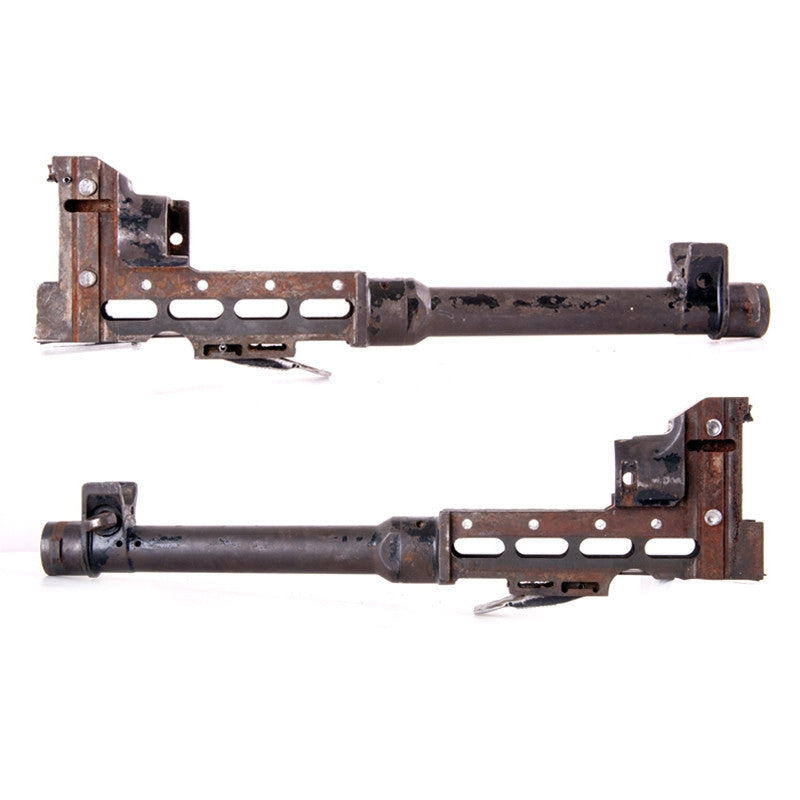

Please Note: There are no duplicated parts in this kit; images show top/bottom or left/right of each part. Small parts (springs, pins, etc.) may vary between kits. What is shown is what is included for each kit.
