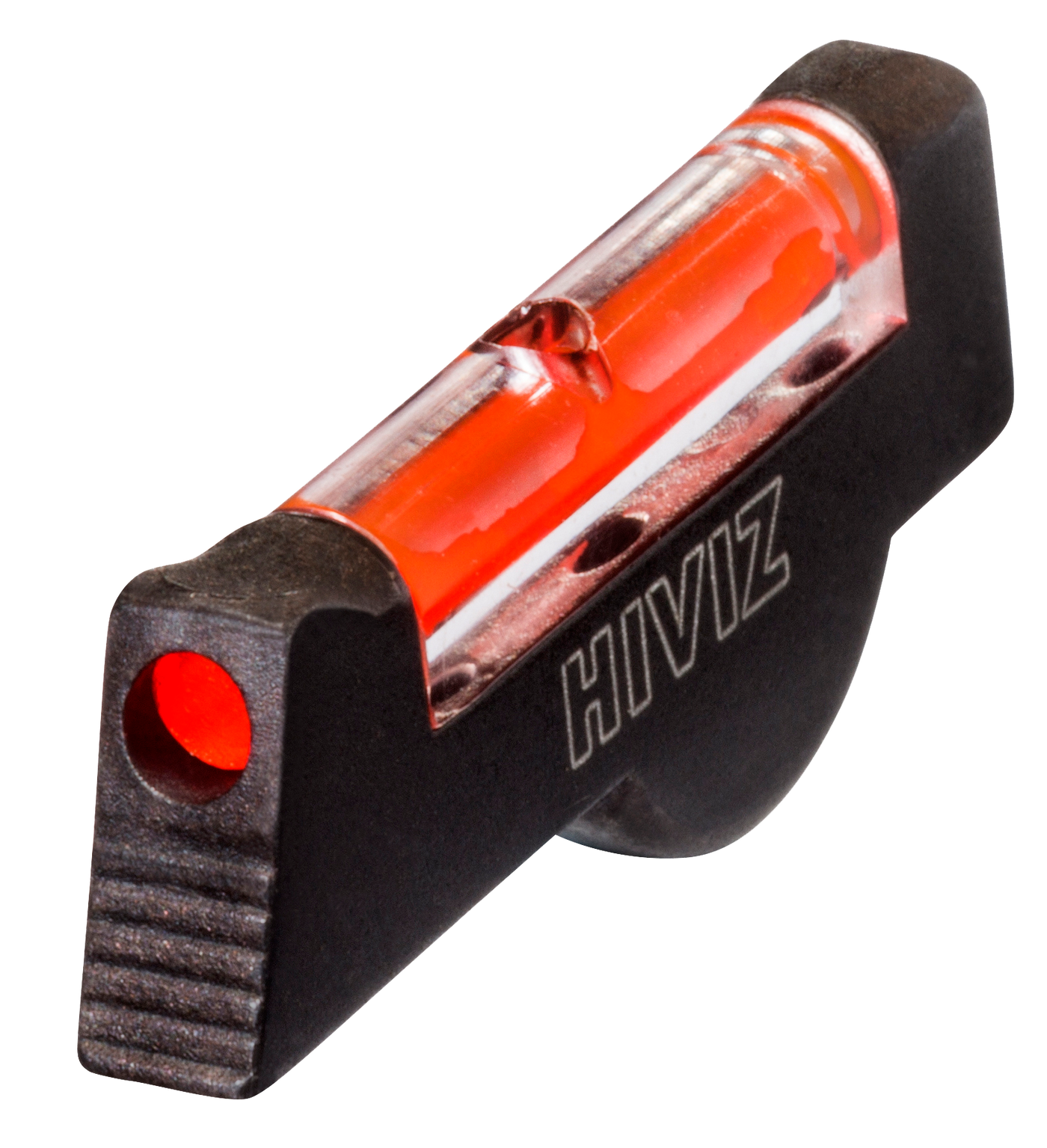

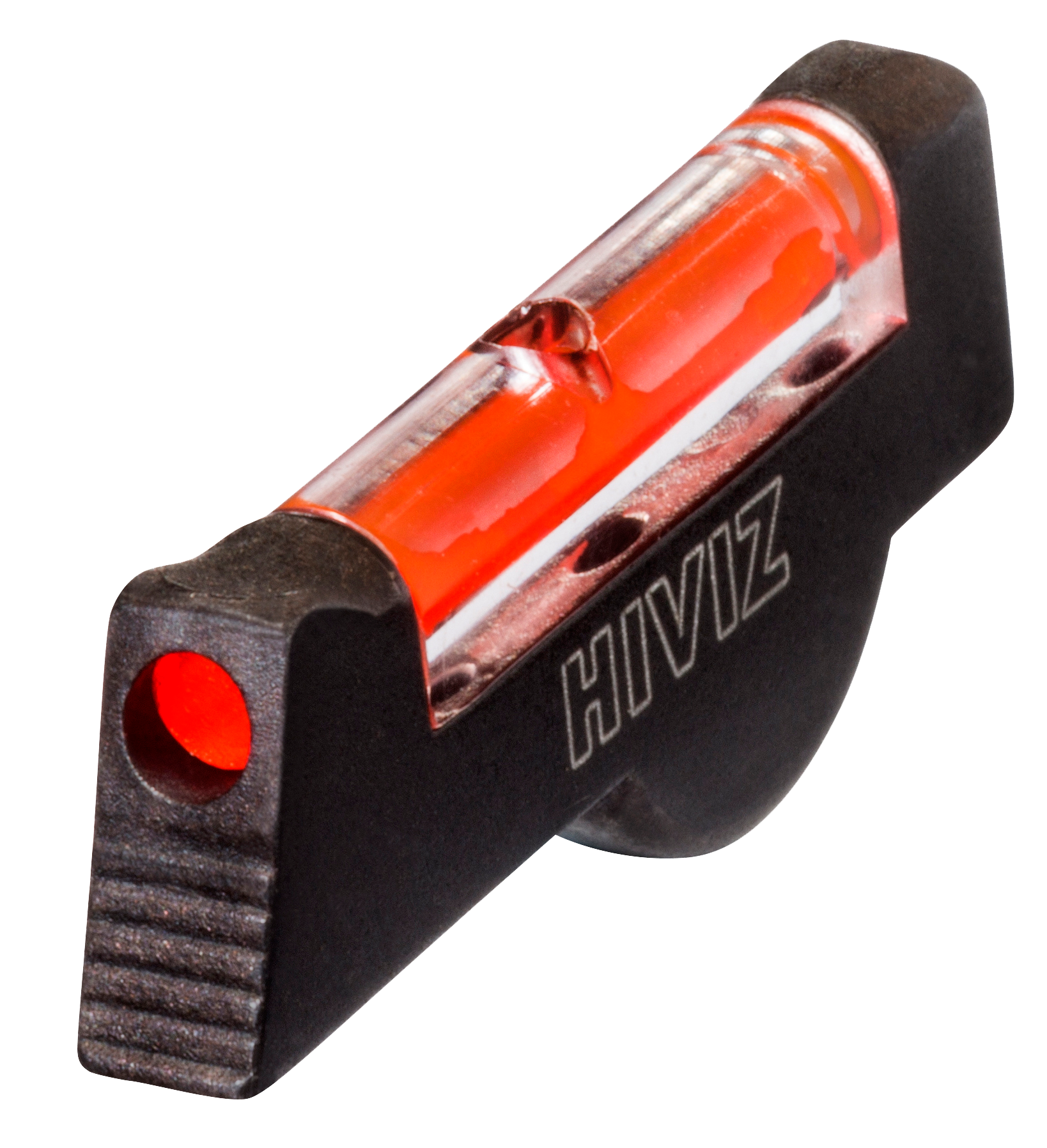

Hiviz SW1002R Pinned Front Sight Smith & Wesson Revolver Red Fiber Optic

The Hiviz SW1002R is a pinned front sight built to upgrade Smith & Wesson revolvers equipped with a pinned front and adjustable rear sight, with 2.5" or longer barrels. The sight is built on a black steel base and features Hiviz's signature red fiber optic LitePipe to deliver a brighter, faster-to-acquire aiming point than a standard factory blade in daylight and well-lit indoor environments.

The LitePipe gathers ambient light and channels it into a high-contrast aiming dot that draws the eye to the front sight quickly. Sized specifically for S&W revolver platforms that use a pinned front with an adjustable rear, the SW1002R measures 0.895" in front sight length with a 0.125" blade width, a 0.269" blade height, and a 0.090" LitePipe diameter for a direct, no-modification swap of the factory pinned blade.

Hiviz overmolds the LitePipe directly into the steel body to keep the fiber element secure against recoil, holstering, and hard field use, so the sight holds zero and keeps its bright aiming reference over time. The low-profile fixed front installs as a pinned replacement and pairs with the revolver's existing rear sight to preserve the factory sight picture while noticeably speeding up sight acquisition and improving practical accuracy.

This is a New, ready-to-install Hiviz SW1002R pinned front sight intended as a direct replacement for the factory front blade on compatible Smith & Wesson revolvers.
