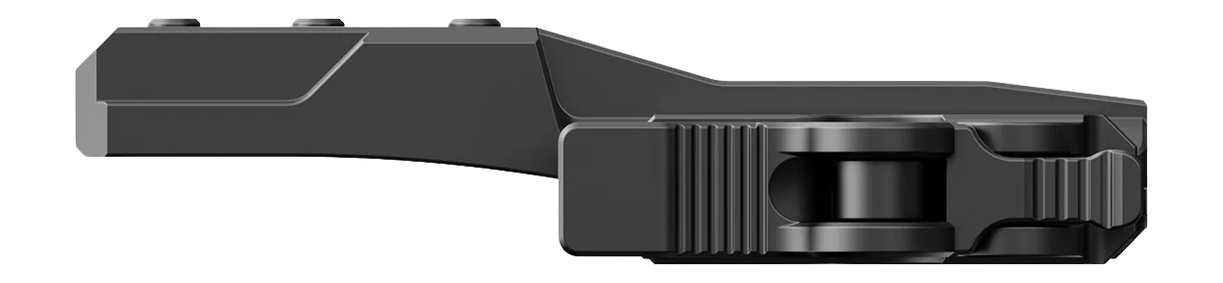

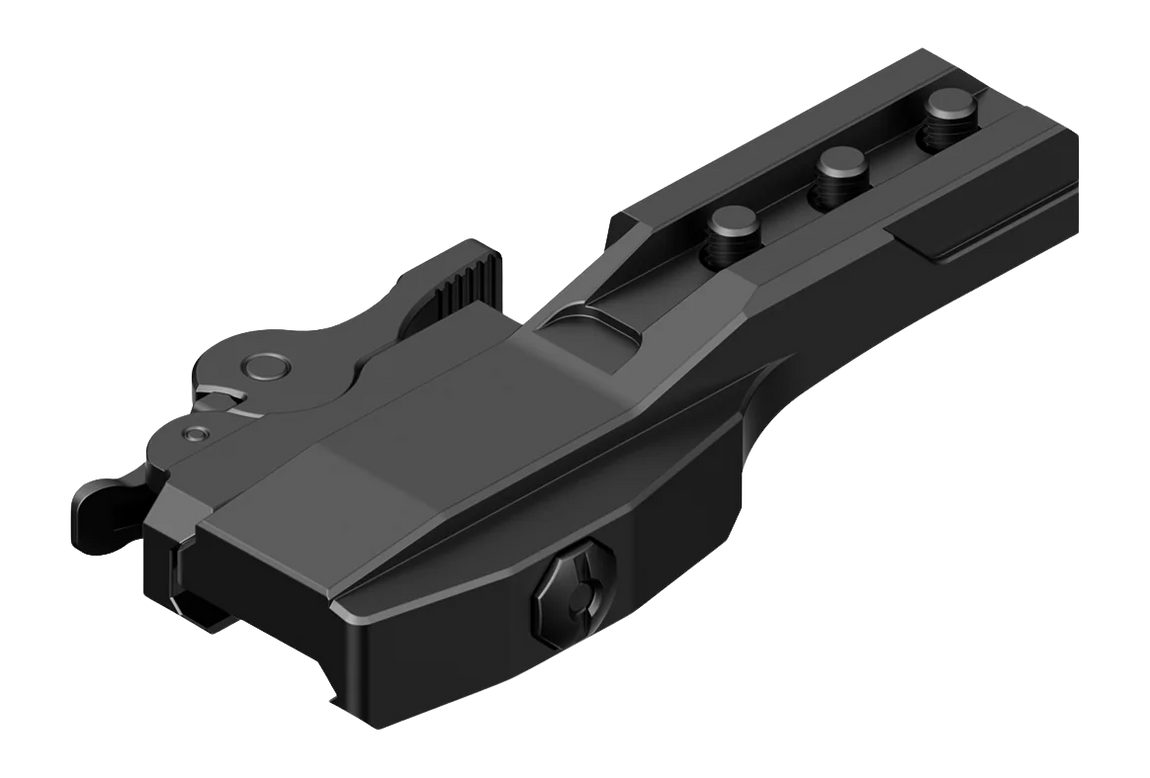

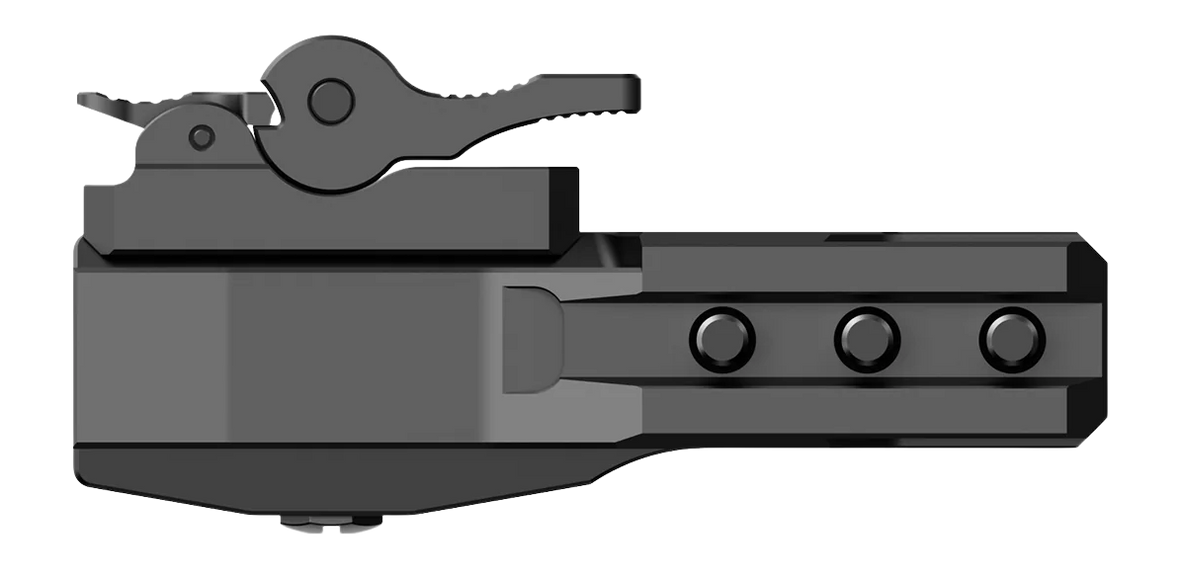

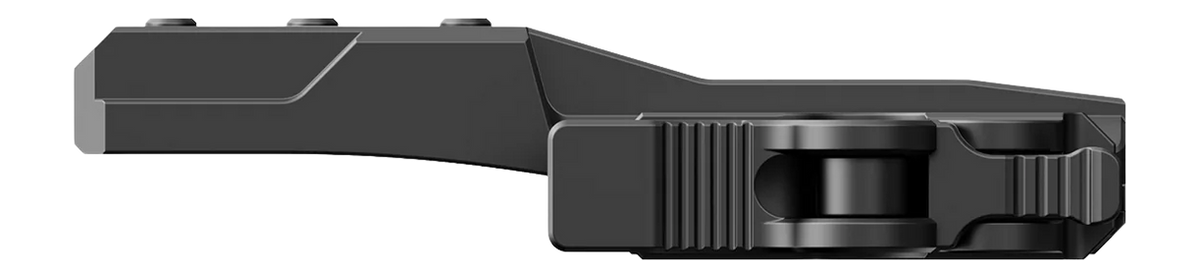

DNT Optics QDS150 Standard Quick Detach Mount 1.5" Height

The DNT Optics QDS150 is a standard quick-detach mount purpose-built to interface with DNT digital optics, including the ThermNight, Hydra, and Zulus HD lines. The QDS150 provides a 1.5" height from rail to optic centerline, giving shooters optimized eye alignment and a comfortable, repeatable cheek weld behind the optic.

Constructed from a blend of 55% recycled post-consumer polycarbonate and 45% metal, the QDS150 keeps weight down to approximately 2.93 oz while delivering the positive lockup expected on a Picatinny rail. The integrated QD lever allows the optic to be removed and re-installed in seconds without losing zero, making optic swaps fast and tool-light.

The mount stands 1.6" tall overall and incorporates an integrated recoil ridge that interfaces cleanly with rails ranging from 3.00" to 4.00" in length (in 0.25" increments). DNT recommends a torque of 35 in-lbs on the crossbolt for a secure, repeatable installation.

Whether you are running a ThermNight thermal, Hydra digital night vision, or Zulus HD day/night optic, the QDS150 standard quick-detach mount delivers a rugged, lightweight mounting solution that snaps on and off the rail in seconds.
