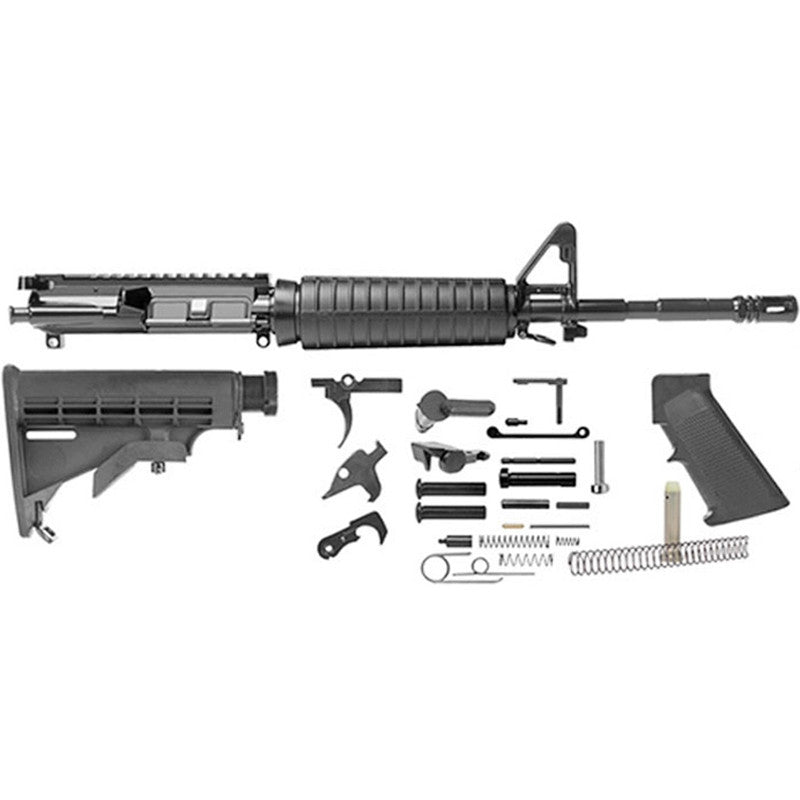

Del-ton .223 M4 AR Parts Kit

Specifications

Chamber

• .223/5.56mm

Barrel

• Chrome moly vanadium
• M4 feed ramps
• 16" length
• 1x9 twist
• A2 flash hider
• Manganese phosphated
• Phosphated under front sight base
• Taper pins in F-marked front sight base
• Threaded muzzle
• M4 profile barrel
• BATF approval is required before installing barrel

Bolt And Carrier

• Phosphated 8620 steel carrier assembly
• Carpenter 158 bolt HPT/MPI tTested
• Heat treated and plated
• Mil-spec
• Chrome lined carrier interior
• Carrier key - chrome lined, attached with grade 8 screws
• Properly staked and sealed gas key

Handguards

• Carbine length
• Aluminum delta ring
• Single heat shield

Upper Receiver

• Forged 7075 T6 aluminum
• A3 flat top with M4 feed ramps
• Hard coat anodized
• Mil-spec
• Ejection port cover and round forward assist
• Right hand ejection
• Bore's surface is coated with dry film lube, over the anodized surface

Buttstock

• M4 6-position
• Reinforced fiber
• Mil-spec sized tube

Grip

• A2 grip
