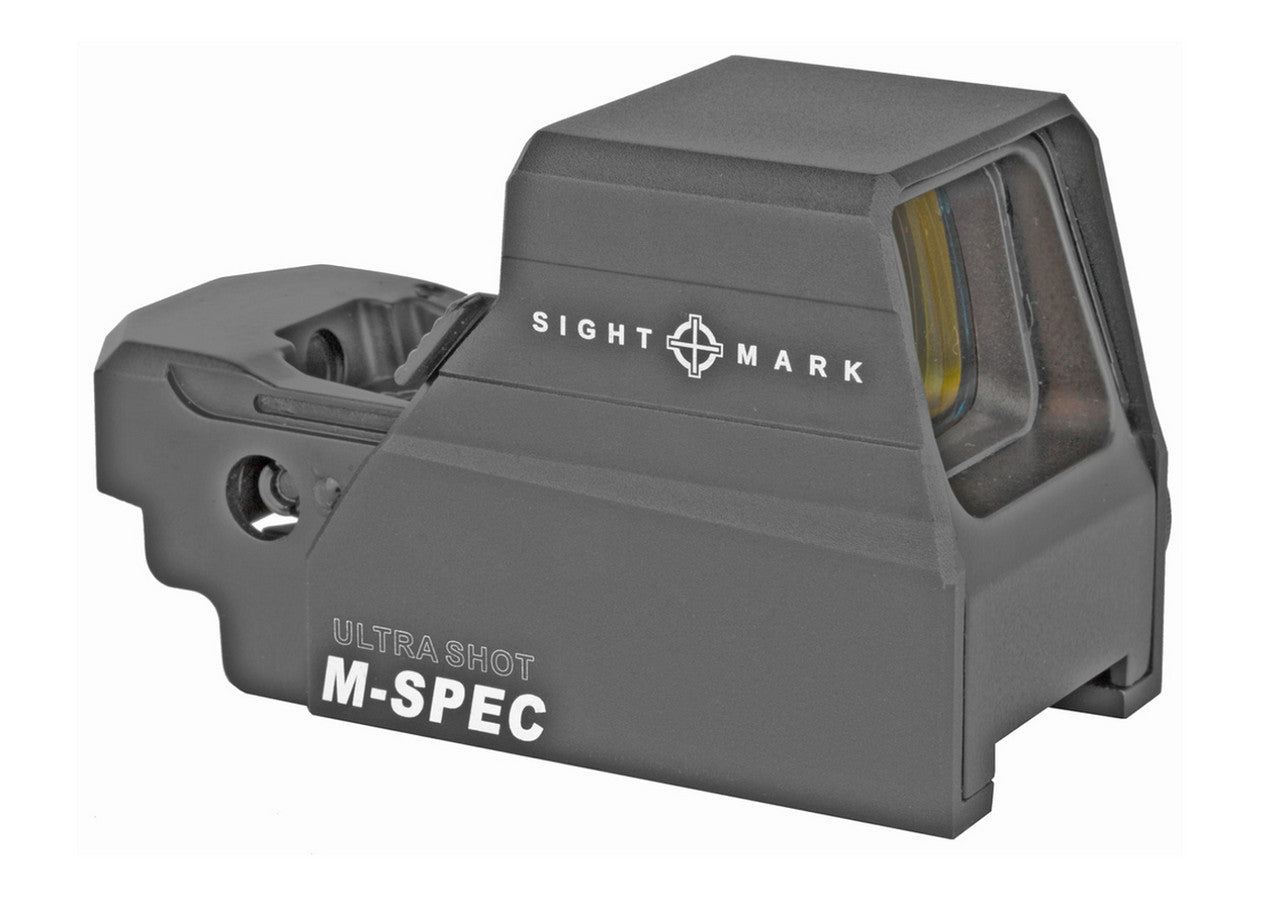

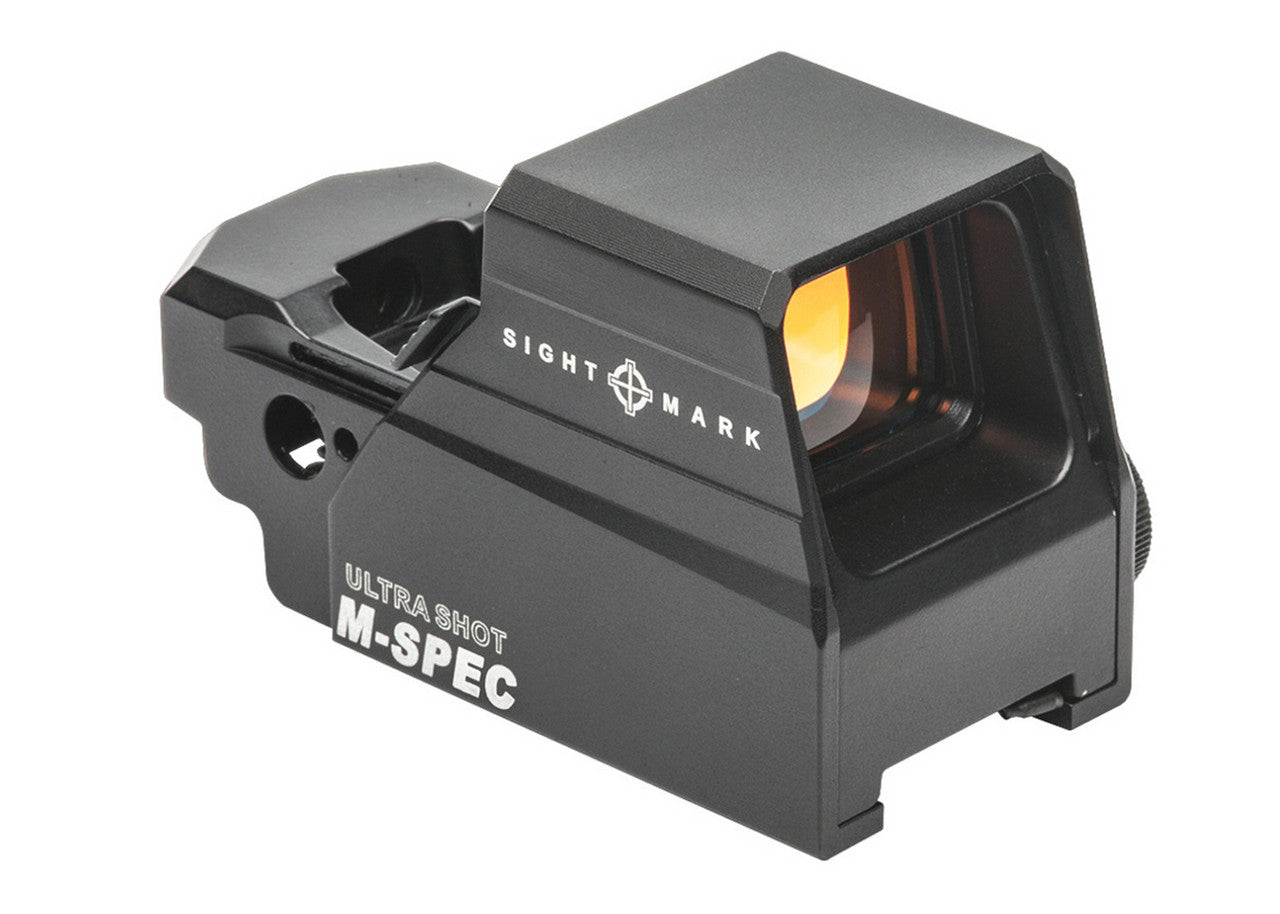

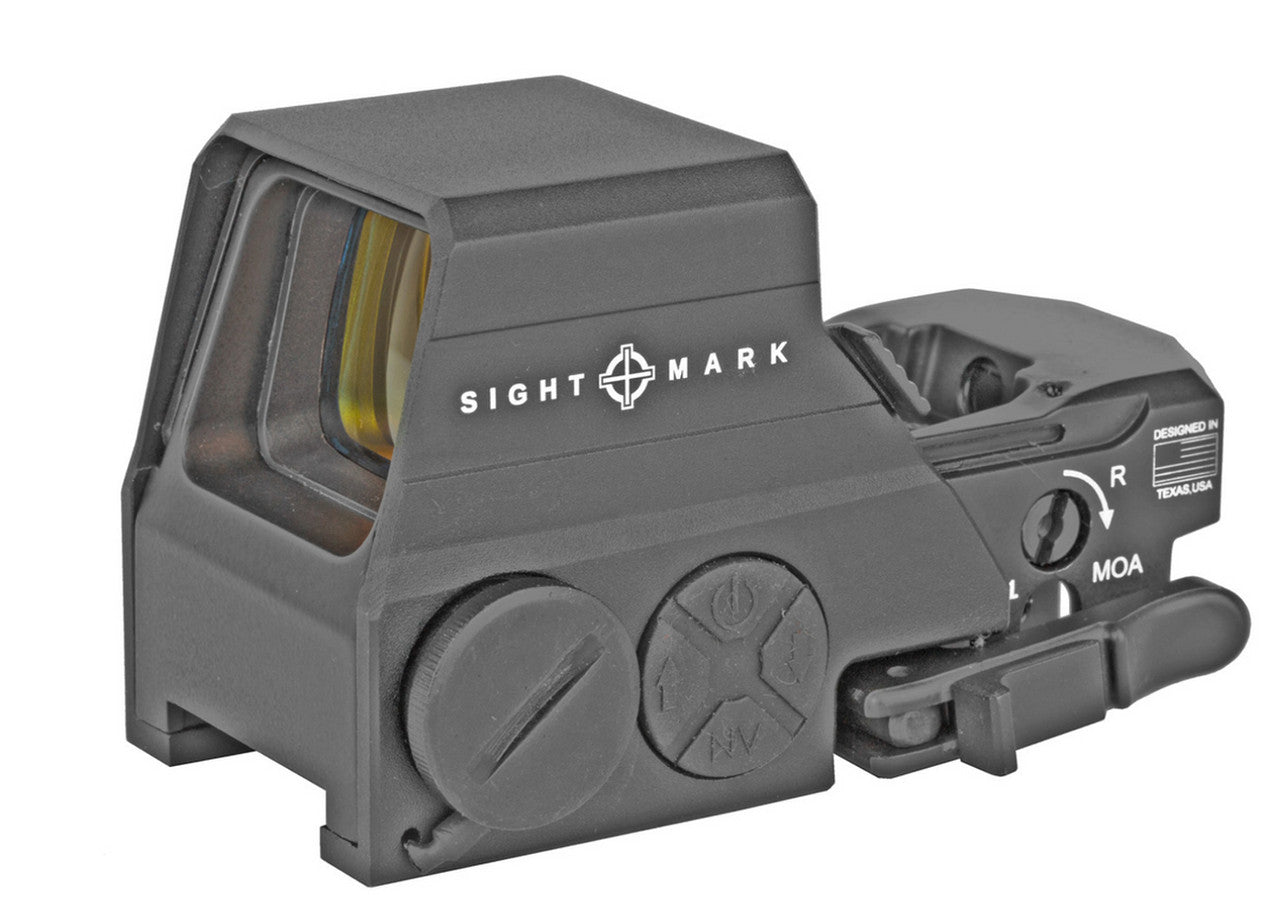

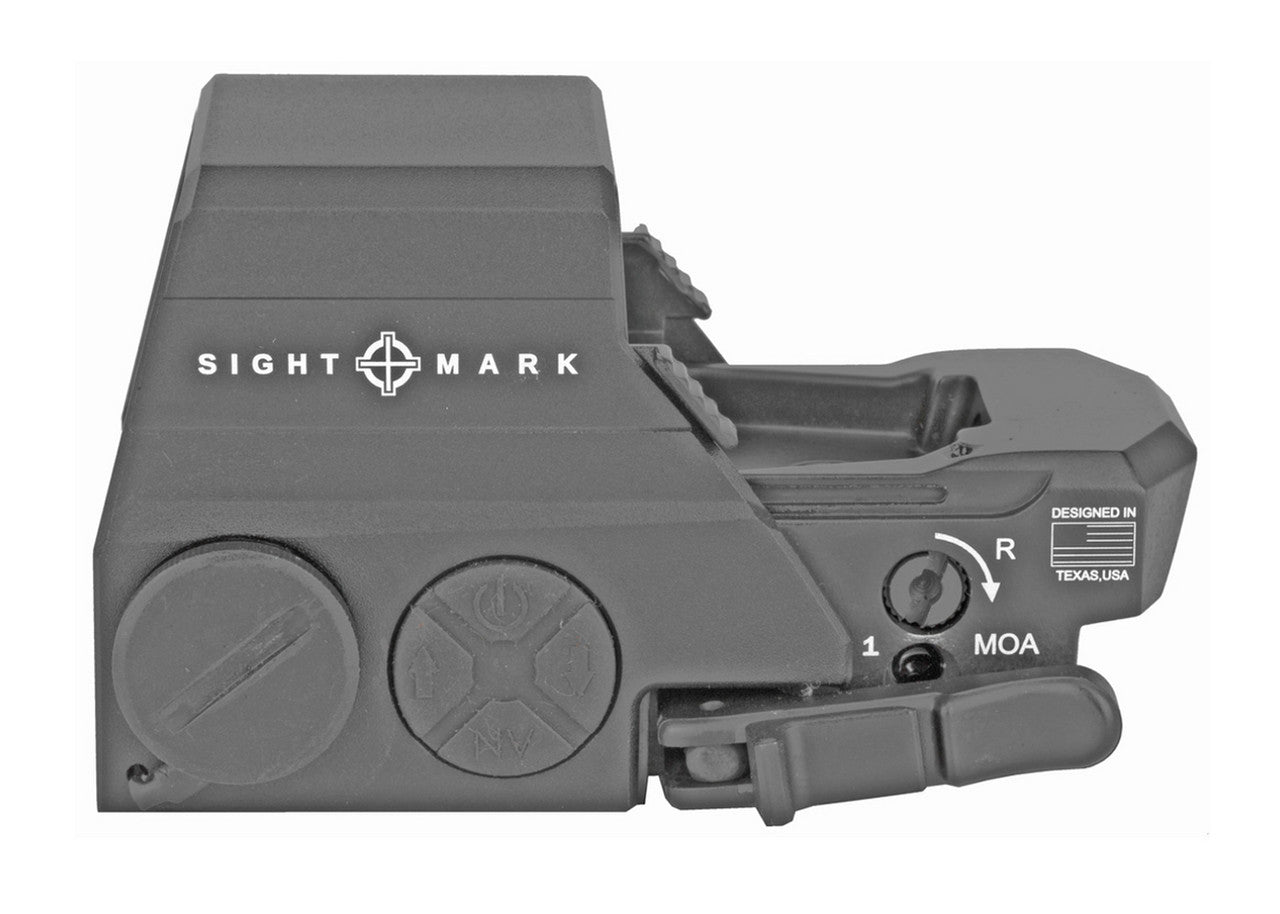

Specially designed to handle your hardcore shooting needs, the Sightmark Ultra Shot M-Spec LQD Reflex Sight promises repeatable accuracy, ultra-fast target acquisition and rugged mil-spec reliability in virtually any environment. The Ultra Shot M-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, patented integrated sunshade, illuminated red 65-MOA circle-dot reticle with 10 brightness settings, night vision brightness modes, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even in low light and when perfect sight alignment isn’t an option. Built tough, the Ultra Shot M-Spec Reflex Sight is shock proof, dustproof, IP68 waterproof, recoil rated up to .338 Win. Mag. and constructed of a rugged, lightweight 6061-T6 aluminum hood and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot M-Spec Reflex Sight also features a low battery indicator, motion sensing auto on/off activation, digital switch controls, 12-hour auto shut-off, locking quick-detach picatinny mount and Sightmark’s lifetime warranty. The Ultra Shot M-Spec LQD Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.
Features and Specifications:

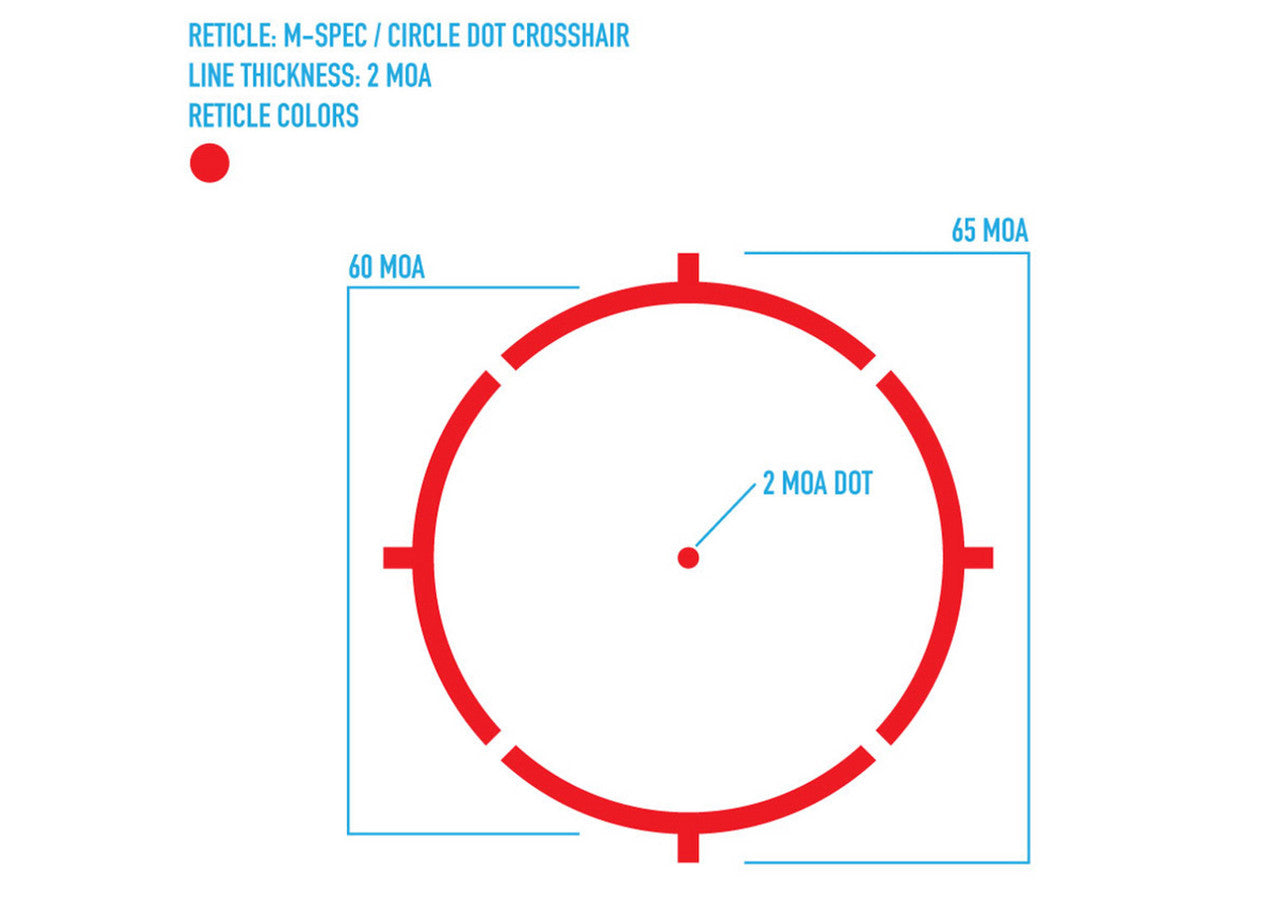

Reticle, Type - 65 MOA Circle Dot Crosshair (60 MOA circle w/ 5 MOA subtension, 2 MOA central dot)
Reticle, Color - Red
Reticle Brightness Setting - Off, 1-10, NV
Magnification - 1
Eye Relief - Unlimited
Objective overall dimension (mm) - 33x24 mm
Elevation Range of Adjustment - 120 MOA
Windage Range of Adjustment - 120 MOA
Adjustment Value - 1 MOA
Parallax Setting - 10 / 9.1 yd/m
Finish/Color - Matte black
Body Material - Magnesium alloy
Maximum Recoil - .50 BMG Max caliber
IP Rating (waterproof) - IP68 - waterproof to 40ft/12m
Nitrogen Filled - No
Shock-proofness - Yes, 8ft / 2.4m
Fog Proof - No
Lens Coating - AR red
Battery Type - CR123A
Mount Type - Picatinny
Battery Life - 200-2,000 Hours
Battery Voltage, V - 3 V
Operating temperature, F/C - -22 to 160 / -30 to 71 F/C
Length (in/mm) - 4.01 / 102 in/mm
Width (in/mm) - 2.24 / 57 in/mm
Height (in/mm) - 2.32 / 59 in/mm
Weight, oz - 10.2 oz.
