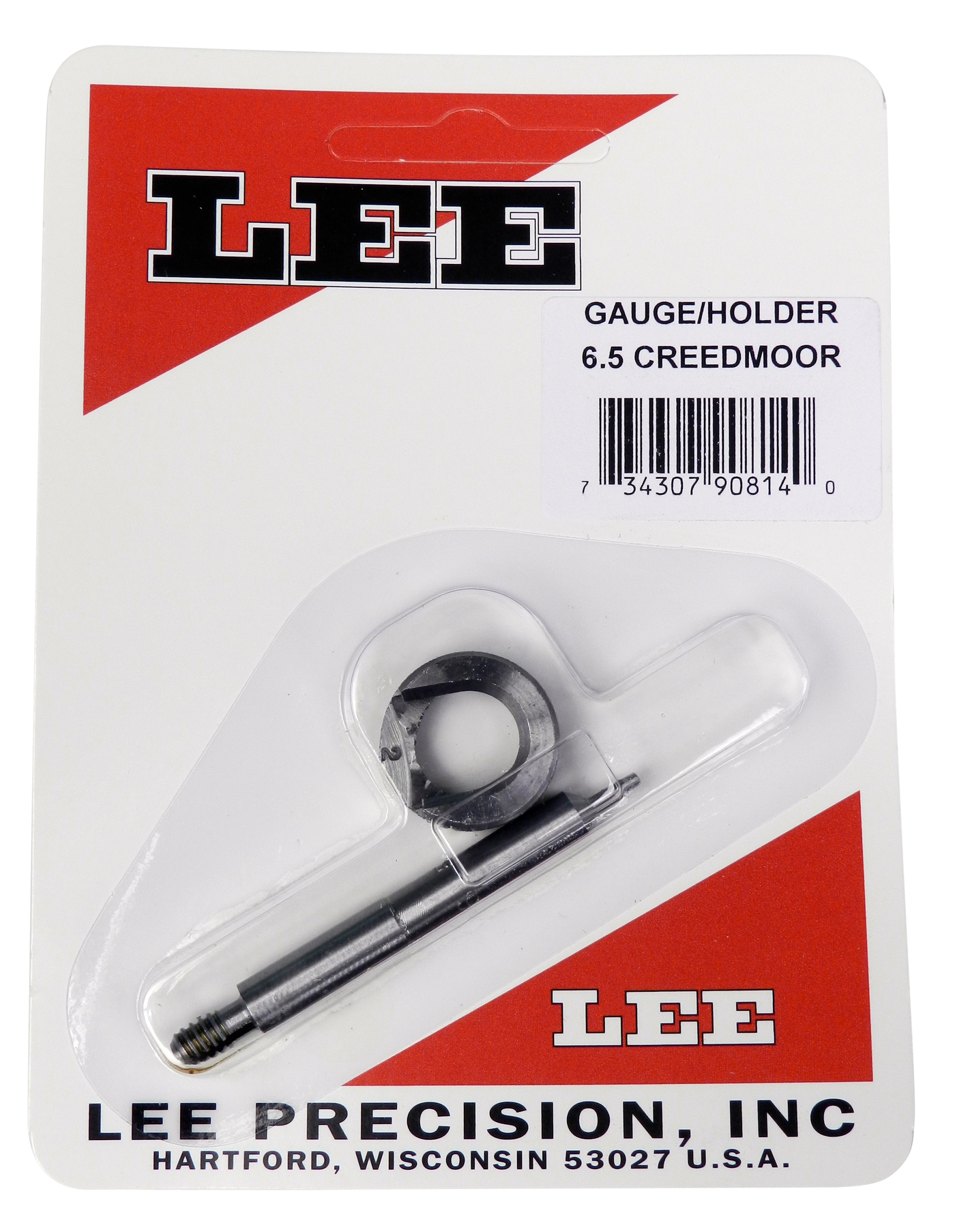

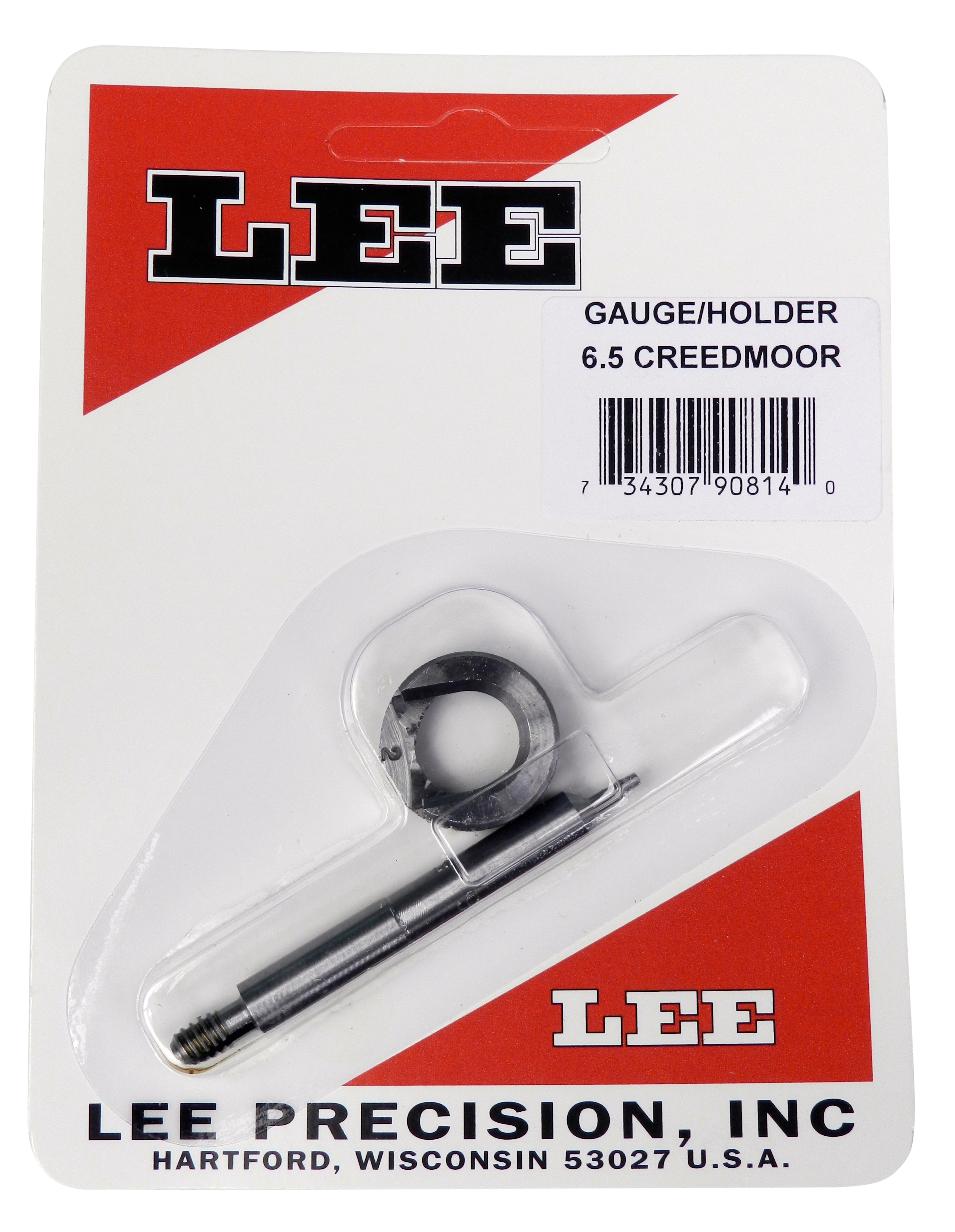

Lee 90814 Case Length Gauge 6.5 Creedmoor - with Shell Holder

The Lee 90814 Case Length Gauge is a precision reloading tool purpose-built for the 6.5 Creedmoor cartridge. This two-piece set combines a dedicated case length gauge with a matching shell holder, giving handloaders a fast, repeatable way to trim brass to length and square the case mouth in the same operation.

Machined from stainless steel with a corrosion-resistant silver finish, the gauge is designed to work with the Lee Cutter and Lock Stud or the Lee Zip Trim case trimmer system. It sets the trim window for the 6.5 Creedmoor at 1.900 to 1.920 inches - the SAAMI trim-to length specification for the cartridge. Simply chuck the gauge in your drill press, run a sized case into it against the cutting head, and trim until the case stops on the gauge face; the case mouth is squared at the same time.

The included shell holder matches the 6.5 Creedmoor case body, centering and supporting a single case so the cut stays square to the case mouth.

Your purchase includes:

• 1x Lee 90814 6.5 Creedmoor Case Length Gauge
• 1x matching Lee shell holder for 6.5 Creedmoor

Compatibility note: Functions as a complete trimming setup when paired with a Lee Cutter and Lock Stud or a Lee Zip Trim cutter (sold separately). A drill press, motor mount, and cutting tool are not included with this gauge.
