With the required, and included, adapter properly installed in the rifle (a single #29 drill bit & 8-32 tap to the receiver is all that is needed), these 30rd SKS magazines can be inserted and removed in most SKS rifles the same as AK-47 mags*!
Buy multiple magazines, and have spare adapters available!
- Caliber: 7.62x39mm
- Zytel construction
- Includes: (1) 30 round detachable magazine, (1) SKS magwell adapter, instruction for installation
- Minor gunsmithing required — see installation instructions below
- Always open bolt prior to inserting or removing this magazine to prevent damage
- *Please note: AK-47 magazines will NOT work with this adapter
- Made in the USA

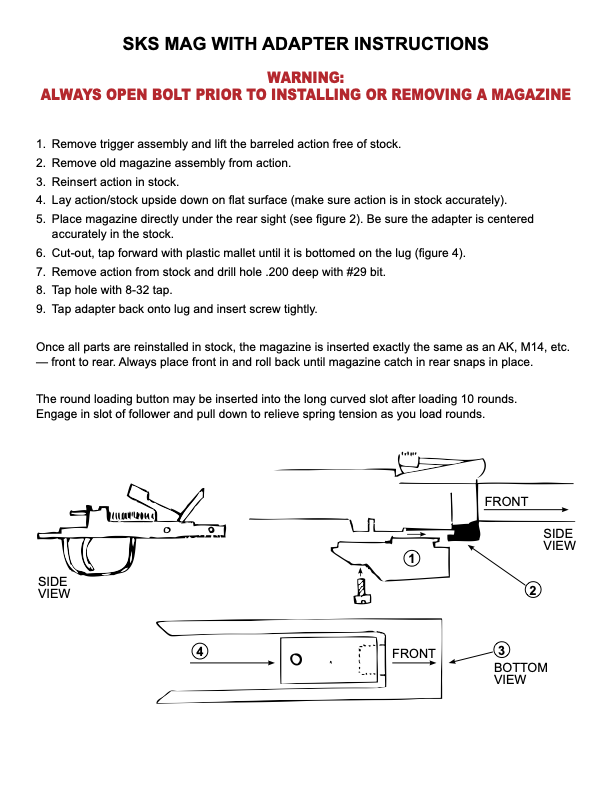

Click Here for Instructions for Magwell Adapter Installation
- Remove trigger assembly
- Lift barreled action free of stock
- Remove original magazine assembly from action
- Reinsert action into stock & lay action/stock upside down on flat surface
- Place MAGSKS08 adapter over magazine lug
- Center adapter in the stock cut-out & tap forward with mallet until bottomed on the lug
- Mark adapter screw hole through bolt opening with center punch
- Remove action from stock & drill .200 deep with #29 bit
- Tap hole with 8-32 tap
- Use mallet to tap adapter back onto lug and insert screw finger tight
- Please Note: These instructions are abridged. Refer to printed sheet included with magazine for complete instructions.
Once all parts are reinstalled in stock, magazine is inserted exactly the same as AK, M14, etc. Insert the front of the magazine and roll back until magazine catch snaps in place.
Please Note: Centerfire Systems Inc... is not responsible for damage incurred to this product, or the firearm it is installed on, due to faulty installation. Returns for this item cannot be accepted after installation has occurred.
